Performance characteristics of the SabreNet series of rugged Ethernet switches:
- Non-blocking wire-speed performance on all ports
- Jumbo frame support at all speeds
- 8K MAC addresses and 4K VLANs (IEEE 802.1Q), as well as 8K IPv4 and IPv6 multicast group support
- VLAN support
- Flexible link aggregation support based on Layer-2 through Layer-4 information (IEEE 802.3ad)
- Multicast and broadcast storm control, as well as flooding control
- Rapid Spanning Tree protocol (RSTP) and MSTP
- Dual leaky bucket policers with remarking and statistics
- 8 priorities and 8 QoS queues per port with scheduling
- Shaping/policing per queue and per port
- Multiple protocol support: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, and IEEE 802.1X
- Built-in MIPS microcontroller for configuration and management
- RS-232 serial port provides out-of-band management interface
- Wide input voltage range: 6-33VDC
- MIL-STD-461, MIL-STD-1275, and MIL-STD-704 compatibility
- MIL-STD-810 shock and vibration rating
- IP67 rated construction
- MIL-DTL-38999 Series III connectors
- -40°C to +85°C operating temperature
|

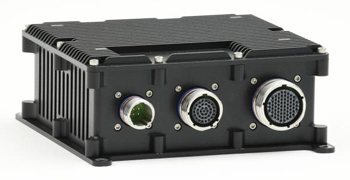

The SabreNet series of rugged Ethernet switches features multiple port counts and both copper and fiber
technologies. Copper ports are triple speed 10/100/100 with auto-negotiation, auto MDI/MDIX, auto power-down of unused ports,
jumbo frame capability, non-blocking wire speed performance, and a wide range of other important embedded features.
Built-in configuration and control software provides Layer 2+ switch functionality. Standard connectivity is via MIL-DTL-38999
connectors with stainless steel finish (type 20K).
Customization capabilities include connector type and pinout, paint type and color, and compliance to
MIL-STD-461, MIL-STD-704, and/or MIL-STD-1275.
| Product |
SabreNet 12000 |
SabreNet 24000 |
SabreNet 24G2X |
| 10/100/1000Mbps copper ports |
12 |
24 |
24 |
| 10G Fiber ports |
0 |
0 |
2 |
| Vin |
6-33VDC |
5-33VDC |
5-33VDC |
| Size |
6.4"W x 5.4"D x 2.6"H |
7.8"W x 6.9"D x 2.6"H |
7.8"W x 6.9"D x 2.6"H |
| Weight |
TBD |
TBD |
TBD |
Option: Integrated power supply with 6-33VDC input, MIL-STD-461 EMI filtering, MIL-STD-704/1275 compliance,
and UPS / holdup capability
| |
|
