Rugged Analog I/O Modules
Our extensive line of analog I/O modules currently includes PC/104, PCIe MiniCard and FeaturePak form-factor products, providing both A/D and D/A functions. Most of these products also include digital I/O and counter/timer features. A unique feature of Diamond analog I/O modules is our patented autocalibration technology, which can reduce analog measurement errors by up to 10 times relative to conventional designs.
Our industry leading analog I/O offers the following benefits:
 |
Highest performance analog in & analog out in a small form factor |
|
More channels, more ranges, higher sample rate |
|
Patented auto-calibration for the highest accuracy |
|
Industry-leading Universal Driver control panels & software |
|
High performance DAQ integrated onto SBCs for cost, weight and size savings |
| |
| PC/104 |
|
Diamond-MM-32DX-AT
32-Channel Analog I/O PC/104 Module with Advanced Automatic Autocalibration |
|
| |
|
|
| |
|
|
| |
|
Ruby-MM-1616A
PC/104 module with 16 16-Bit D/A outputs plus 48 DIO, extended temperature operation |
|
| | | PC/104-Plus |
|
DIAMOND-MM-16RP-AT
The Diamond-MM-16RP-AT analog I/O module provides excellent low-noise performance and full-speed sampling in a multi-channel configuration without loss of accuracy. |
|
| |
|
Ruby-MM-1616AP
PC/104-Plus module with 16 16-Bit D/A outputs plus 48 DIO, extended temperature operation |
|
| | | PCIe MiniCard |
|
|
|
> >
See our Analog I/O Modules feature comparison chart
< <
 |
2-in-1 SBCs with Integrated Analog I/O |
If you need analog I/O in your application, consider using one of Diamond�s 2-in-1 SBCs that integrate a complete data acquisition
circuit directly onto the SBC. This space-saving approach eliminates one board in your system, making it smaller, lighter, more
rugged, and easier to assemble and manage.
- Aries -- PC/104-Plus SBC based on an Intel E3800 dual core or quad core CPU
- Helios -- PC/104 SBC based on a 800MHz or 1GHz Vortex86DX CPU
- Helix -- PC/104 SBC based on a 1GHz Vortex86DX3 CPU
- Athena III -- PC/104 SBC based on a 1.6GHz Intel E680T CPU
- Hercules III -- EBX SBC based on a 1.6GHz Intel E680T CPU
- Neptune -- EPIC SBC with configurable ETX Intel E3845 or AMD G-Series COM CPU
- Zeta -- COM Express Mini SBC with Intel Bay Trail / Apollo Lake CPUs
|
Other Embedded I/O Expansion Modules |
Diamond's product line also includes the following PC/104, PCIe MiniCard, EMX and FeaturePak expansion module families:
|
 |
Typical Features |
 |
|
 |
Up to 32 16-bit analog inputs |
|
Up to 4 12-bit analog outputs |
|
Up to 256KHz A/D sampling rate |
|
1024 sample FIFO |
|
Programmable input ranges |
|
Automatic autocalibration for carefree, high accuracy measurements |
|
Counter/timer for A/D pacer clock and D/A waveform generator |
|
-40 to +85 degrees C operation |
|
+5V-only power supply |
|
Universal Driver software and technical manual included |
|
|
(click image to enlarge)
|
| Back to top |
|

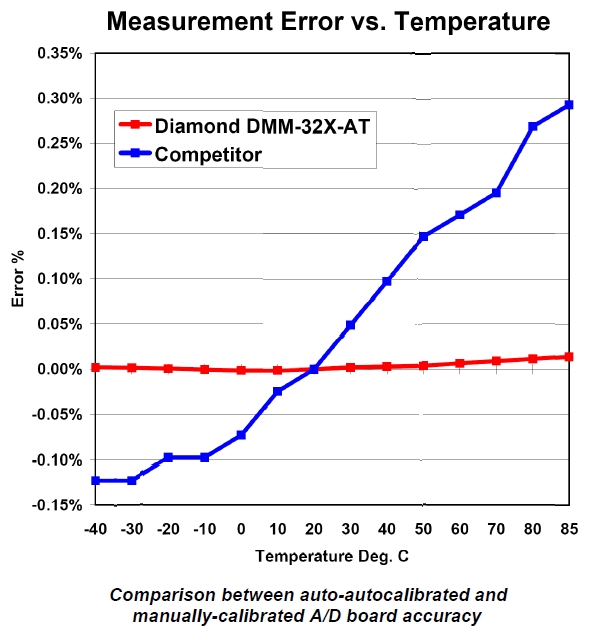

Autocalibration for Enhanced Analog I/O Accuracy |
Every analog circuit exhibits fluctuations in performance due to changes in temperature. Today's complex A/D circuits may exhibit errors that become
significant in comparison to the signal being measured. The problem becomes even worse with products which are rated for operation over a wide temperature range of -40 to +85 degrees C.
Autocalibration solves these problems by enabling the board to be calibrated under software control at any time. No physical access is required, so the process can be done as often as desired, limiting any effects of temperature changes on the system. Additionally, Diamond's Universal Driver software provides a built-in autocalibration function call, which enables quick and easy calibration and ensures accurate measurements at all times.
For further information on this topic, read our analog autocalibration whitepaper (pdf download).
| Analog Inputs |
Analog Outputs |
Miscellaneous |
| Product |
Form Factor |
# Inputs |
Res |
Bip |
Uni |
Gain |
Max |
Autocal |
FIFO |
# Out |
Res |
Bip |
Uni |
# Digital I/O |
XT |
|
PC/104 |
32 SE, 16 DI |
16 |
5 |
5 |
Program |
250KHz |
Auto |
1024 |
4 |
16 |
3 |
3 |
24 I/O |
Yes |
|
PC/104 |
32 SE, 16 DI |
16 |
5 |
4 |
Program |
250KHz |
Yes |
1024 |
4 |
12 |
2 |
2 |
24 I/O |
Yes |
|
PC/104 |
16SE, 8 DI |
16 |
5 |
4 |
Program |
100KHz |
Yes |
512 |
4 |
12 |
2 |
2 |
8 In, 8 Out |
Yes |
|
PC/104 |
16SE, 8 DI |
16 |
5 |
4 |
Program |
100KHz |
Yes |
512 |
4 |
12 |
2 |
2 |
8 In, 8 Out |
Yes |
|
PC/104 |
16SE, 8 DI |
12 |
5 |
4 |
Program |
100KHz |
Yes |
512 |
2 |
12 |
2 |
2 |
8 In, 8 Out |
Yes |
|
PC/104 |
16SE, 8 DI |
12 |
6 |
6 |
Jumper |
100KHz |
|
| 2 |
12 |
| 2 |
8 In, 8 Out |
Yes |
|
PC/104 |
|
|
|
|
|
|
|
| 16 |
16 |
2 |
2 |
48 I/O |
Yes |
|
PC/104 |
|
|
|
|
|
|
|
| 8 |
16 |
2 |
2 |
48 I/O |
Yes |
|
PC/104 |
|
|
|
|
|
|
|
| 4 |
16 |
2 |
2 |
48 I/O |
Yes |
|
PC/104-Plus |
|
|
|
|
|
|
|
| 16 |
16 |
2 |
2 |
48 I/O |
Yes |
|
PC/104-Plus |
|
|
|
|
|
|
|
| 8 |
16 |
2 |
2 |
48 I/O |
Yes |
|
PC/104-Plus |
|
|
|
|
|
|
|
| 4 |
16 |
2 |
2 |
48 I/O |
Yes |
|
PC/104-Plus |
16SE, 8 DI |
16 |
4 |
4 |
Program |
2MHz |
Yes |
16K |
16 |
16 |
4 |
3 |
32 I/O |
Yes |
|
PCIe MiniCard |
8SE, 4 DI |
16 |
2 |
2 |
Program |
100KHz |
|
2048 |
4 |
16 |
0 |
2 |
14 I/O |
Yes |
|
FeaturePak |
16SE, 8 DI |
16 |
4 |
4 |
Program |
2MHz |
Yes |
16K |
16 |
16 |
4 |
3 |
32 I/O |
Yes |
| SE |
Single-ended analog inputs |
| DI |
Differential analog inputs |
| I/O |
Programmable direction |
Headings
| Res |
Resolution |
| Bip |
Bipolar ranges |
| Uni |
Unipolar ranges |
| Max |
Max sample rate |
| Autocal |
Autocalibration |
| FIFO |
Number of FIFO samples |
| XT |
-40 to to +85 degrees C |
|
